The association between anthropometric measurements (rider height/horse height) and frame size is a statistical average based on the over 17,000 tests carried out and present in the idmatch database considering the correlation between frame size - stem length. All this - given that each Cipollini® frame has a specific geometry aimed at the different use of the specific type of cyclist - has the sole purpose of providing an initial indication of the correct size to choose for the specific model. In order to fully enjoy the experience with a Cipollini® frame, we advise you to choose an "idmatch dealer" or a professional biomechanic for the correct positioning on the bike.
go back
How to measure height
Stand upright
Stand barefoot against a wall with your heels, buttocks, shoulders and head touching the wall. Straighten your chin and look straight ahead. Ask a person to place a book on your head, pushing it parallel until it touches the wall so that it creates a right angle with the wall.
At this point the person helping you will draw a line with a pencil at the level that reaches the book on the wall. Measure the distance from the floor to the line: the number obtained corresponds to your height.
go back
How to measure crotch
For the measurement you need to be barefoot and wear cycling shorts. Stand up straight against a wall and having someone help you, place a metric spirit level (bubble) between your thighs, at crotch height.
Measure the distance from the outer edge of the spirit level to the ground. This measurement corresponds to your horse
Discover every detail of the RB1K AD.ONE
RB1K AD.ONE brings the same aerodynamics of time trial bikes to the road.
Description
RB1K AD.ONE is the ideal match between aerodynamic studies that inspire other MCipollini models, such as the NKTT, and the rideability of a road bike. TCM technology provides the authentic monocoque frame allowing for the perfect connection of the triangle to the bottom bracket. The frame is also specifically designed to provide the same stiffness and rideability for each of the six available sizes, thanks to the different sections of the tubes and connetion sections. Titanium Thru Pins maintain the required total stiffness to achieve a no compromise experience. The 1X Ready single chainring cover dedicated to those who want to maximise aerodynamics without the front derailleur. Increased buttonhole for hydraulic maintenance, without having to remove the nose cone.
User manual
To find out all about the use and maintenance of your MCipollini RB1K AD.ONE please refer to the manual available here.
Warranty
Discover our warranty for your new MCipollini
Spare parts
If you need replacement parts for your RB1K AD.ONE see the full catalogue here.
Technical features
- maximum tyre width29 mm (MEASURED WIDTH)
- central movementPRESSFIT 46 X 86,5 mm
- fork weight390 g
- chassis weight1.010 g
- seat postOFFSET 0 mm 130 g. Optional: OFFSET 12 mm
- headsetCONICAL 1.1/2" 1.1/2"
- handlebar stemVision HB Metron 5D ACR 3K(XS/S: 100x400 mm, M: 110x420 mm, L: 120x420 mm, XL/XXL: 130x440 mm c-c)
- exchangeSRAM RED E-TAP AXS D1 - long cage
- chainSRAM PC RED D1, 12 s
- gripper controlsSRAM RED E-TAP AXS DICS D1 Flat Mount
- coversPirelli P Zero Race TLR 26-622
- forkMCipollini RB1K AD.ONE
- garnishSRAM RED D1 QUARQ Powermeter DUB 46T(XS/S: 170 mm, M/L: 172,5 mm, XL/XXL: 175 mm)
- central movementSRAM DUB 386
- handlebar tapeSupacaz Super Sticky Kush Classic - Black, Pair
- sprocket setSRAM XG-1270 D1 X-Glide 10-36, 12 s
- seatpostMCipollini RB1K AD.ONE
- rotorsSRAM Centerline X ROAD 2P Centerlock 160 mm
- rear wheelCampagnolo BORA WTO 60 DB 2WF DCS XDR
- rear wheelCampagnolo BORA WTO 45 DB 2WF DCS
- saddleSelle Italia SLR Boost Superflow Carbon Kit
- chassisMCipollini RB1K AD.ONE
TCM, the Frame of a Genius
MCipollini’s real TCM monocoque frame eliminates many of the weaknesses of the other monocoque frames on the market, which are often built by fastening the rear triangle to the front of the frame using adhesive.. This treatment makes the frame structure more prone to deterioration in the long term, resulting in a decrease in performance. TCM's monocoque structure however tends to absorb the frame pressures more evenly and less impactful, promoting durability over the years. Stronger, tougher, lighter: this is why the MCipollini frame is The Frame of a Genius.
How we build the TCM frame
The TCM frame created from a single mould, thanks to a long and complex machining process. The carbon elements are positioned and layered inside an aluminium mould to achieve the maximum result. This means that the lamination process produces a single piece that does not undergo any further structural processing or subsequent firing that could alter the frame structure.
Perfect fibres

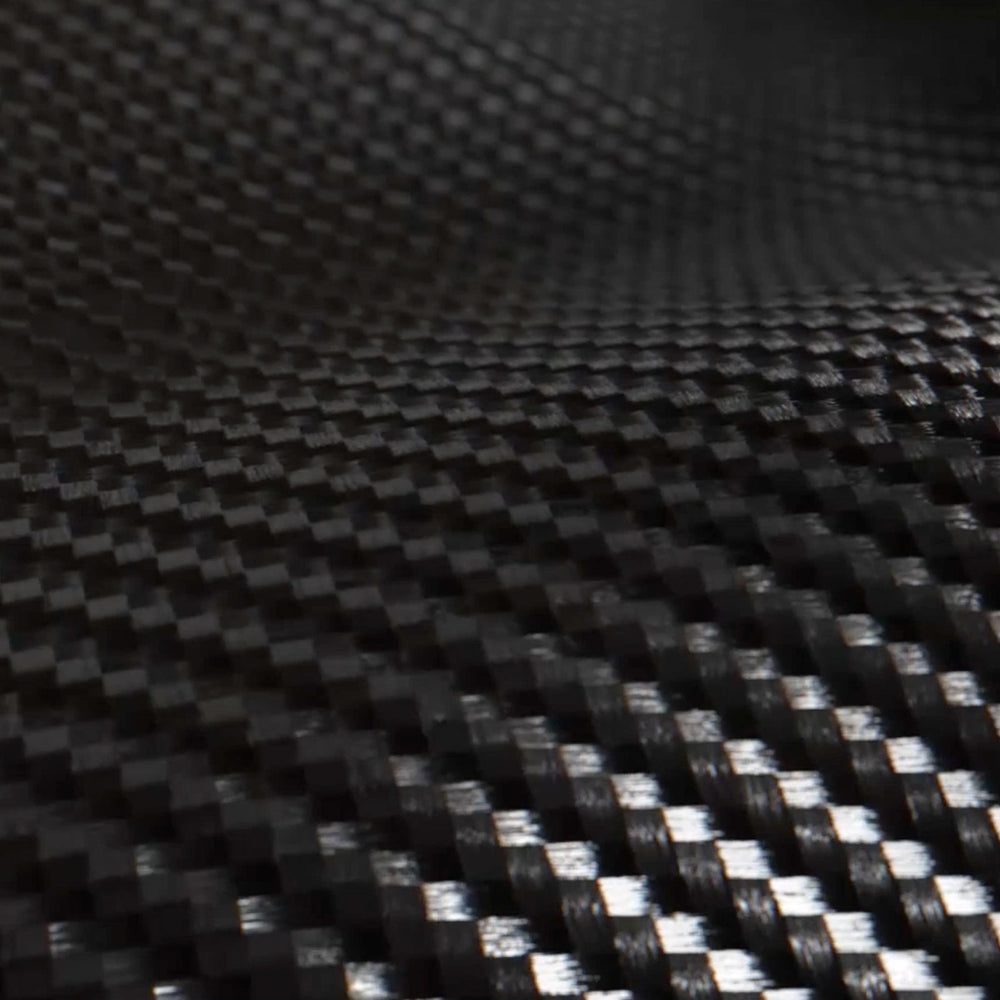

The choice of the fibres used in the lamination, their certification and the autoclave construction technology bestow unique mechanical characteristics to the MCipollini frames.
The materials used in the manufacturing process are pre-impregnated with epoxy matrix resins and undergo sequential checks to ensure that the resin content is uniform on all the various parts.
