Size guide
Size/Mounting | Height Crotch max cm | Height Crotch min cm | Height max cm | Height min cm |
---|---|---|---|---|
XS / Kit frame | 76 | 0 | 164 | 0 |
XS / Kit frame - Deda Alanera - ALANER | 76 | 0 | 164 | 0 |
XS / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 76 | 0 | 164 | 0 |
XS / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 76 | 0 | 164 | 0 |
XS / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 76 | 0 | 164 | 0 |
XS / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 76 | 0 | 164 | 0 |
XS / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 76 | 0 | 164 | 0 |
S / Kit frame | 80 | 74 | 171 | 163 |
S / Kit frame - Deda Alanera - ALANER | 80 | 74 | 171 | 163 |
S / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 80 | 74 | 171 | 163 |
S / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 80 | 74 | 171 | 163 |
S / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 80 | 74 | 171 | 163 |
S / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 80 | 74 | 171 | 163 |
S / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 80 | 74 | 171 | 163 |
M / Kit frame | 83 | 79 | 180 | 170 |
M / Kit frame - Deda Alanera - ALANER | 83 | 79 | 180 | 170 |
M / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 83 | 79 | 180 | 170 |
M / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 83 | 79 | 180 | 170 |
M / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 83 | 79 | 180 | 170 |
M / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 83 | 79 | 180 | 170 |
M / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 83 | 79 | 180 | 170 |
L / Kit frame | 88 | 81 | 188 | 178 |
L / Kit frame - Deda Alanera - ALANER | 88 | 81 | 188 | 178 |
L / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 88 | 81 | 188 | 178 |
L / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 88 | 81 | 188 | 178 |
L / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 88 | 81 | 188 | 178 |
L / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 88 | 81 | 188 | 178 |
L / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 88 | 81 | 188 | 178 |
XL / Kit frame | 130 | 86 | 220 | 186 |
XL / Kit frame - Deda Alanera - ALANER | 130 | 86 | 220 | 186 |
XL / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 130 | 86 | 220 | 186 |
XL / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 130 | 86 | 220 | 186 |
XL / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 130 | 86 | 220 | 186 |
XL / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 130 | 86 | 220 | 186 |
XL / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 130 | 86 | 220 | 186 |
L / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 88 | 81 | 188 | 178 |
M / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 83 | 79 | 180 | 170 |
S / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 80 | 74 | 171 | 163 |
XL / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 130 | 86 | 220 | 186 |
XS / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 76 | 0 | 164 | 0 |
XS / Kit frame | 76 | 0 | 164 | 0 |
XS / Kit frame - Deda Alanera - ALANER | 76 | 0 | 164 | 0 |
XS / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 76 | 0 | 164 | 0 |
XS / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 76 | 0 | 164 | 0 |
XS / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 76 | 0 | 164 | 0 |
XS / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 76 | 0 | 164 | 0 |
XS / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 76 | 0 | 164 | 0 |
S / Kit frame | 80 | 74 | 171 | 163 |
S / Kit frame - Deda Alanera - ALANER | 80 | 74 | 171 | 163 |
S / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 80 | 74 | 171 | 163 |
S / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 80 | 74 | 171 | 163 |
S / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 80 | 74 | 171 | 163 |
S / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 80 | 74 | 171 | 163 |
S / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 80 | 74 | 171 | 163 |
M / Kit frame | 83 | 79 | 180 | 170 |
M / Kit frame - Deda Alanera - ALANER | 83 | 79 | 180 | 170 |
M / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 83 | 79 | 180 | 170 |
M / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 83 | 79 | 180 | 170 |
M / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 83 | 79 | 180 | 170 |
M / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 83 | 79 | 180 | 170 |
M / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 83 | 79 | 180 | 170 |
L / Kit frame | 88 | 81 | 188 | 178 |
L / Kit frame - Deda Alanera - ALANER | 88 | 81 | 188 | 178 |
L / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 88 | 81 | 188 | 178 |
L / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 88 | 81 | 188 | 178 |
L / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 88 | 81 | 188 | 178 |
L / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 88 | 81 | 188 | 178 |
L / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 88 | 81 | 188 | 178 |
XL / Kit frame | 130 | 86 | 220 | 186 |
XL / Kit frame - Deda Alanera - ALANER | 130 | 86 | 220 | 186 |
XL / Sram Rival E-Tap AXS- Fulcrum Racing 400 - O30DP | 130 | 86 | 220 | 186 |
XL / SRAM RED E-TAP AXS D1- Campagnolo BORA WTO - N30ZQ | 130 | 86 | 220 | 186 |
XL / Shimano Dura-Ace Di2- Campagnolo BORA WTO - P30ZQ | 130 | 86 | 220 | 186 |
XL / Shimano Ultegra Di2 - Fulcrum AIRBEAT 400 - Q30MP | 130 | 86 | 220 | 186 |
XL / Campagnolo SUPER RECORD WRL 12s - Campagnolo BORA WTO - S30ZQ | 130 | 86 | 220 | 186 |
L / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 88 | 81 | 188 | 178 |
M / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 83 | 79 | 180 | 170 |
S / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 80 | 74 | 171 | 163 |
XL / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 130 | 86 | 220 | 186 |
XS / Shimano Dura-Ace Di2- Fulcrum Airbeat 400 - P30MQ | 76 | 0 | 164 | 0 |
Calculate your size
Help
Help
We recommend that you contact a retailer for further advice.
The association between anthropometric measurements (rider height/horse height) and frame size is a statistical average based on the over 17,000 tests carried out and present in the idmatch database considering the correlation between frame size - stem length. All this - given that each Cipollini® frame has a specific geometry aimed at the different use of the specific type of cyclist - has the sole purpose of providing an initial indication of the correct size to choose for the specific model. In order to fully enjoy the experience with a Cipollini® frame, we advise you to choose an "idmatch dealer" or a professional biomechanic for the correct positioning on the bike.
go back
How to measure height
go back
How to measure crotch
Technical features
- maximum tyre width28 mm (Larghezza misurata)
- central movementPRESSFIT 41 X 86,5 mm
- fork weight420g
- chassis weight1020g
- seat postOFFSET 15 mm 130 g. Optional: OFFSET 0 mm
- headsetCONICAL 1.1/2” 1.1/2”
- break systemCALIPER DISC BRAKE (FLAT MOUNT, THRU AXLE 12 X 142 mm - 12 X 100 mm)

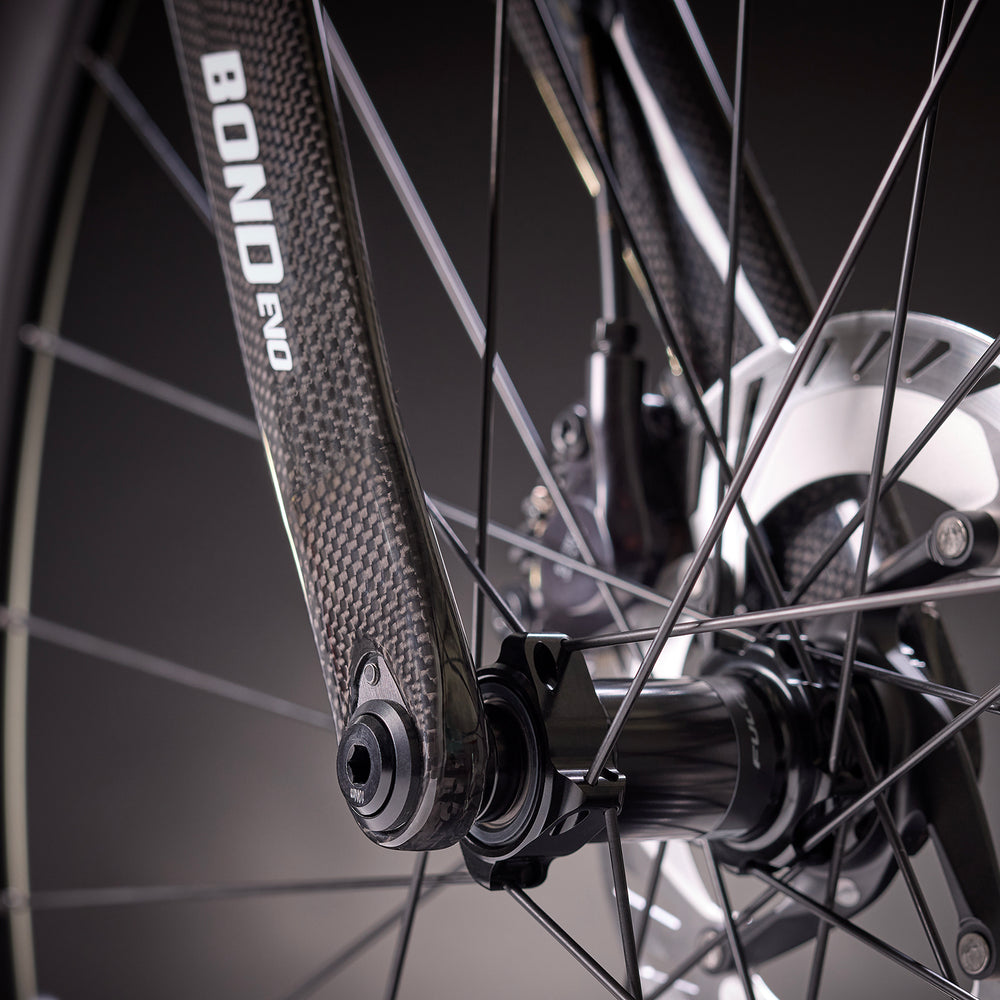

- forkMCipollini Bond Evo
- seatpostMCipollini Bond Evo
- chassisMCipollini Bond Evo

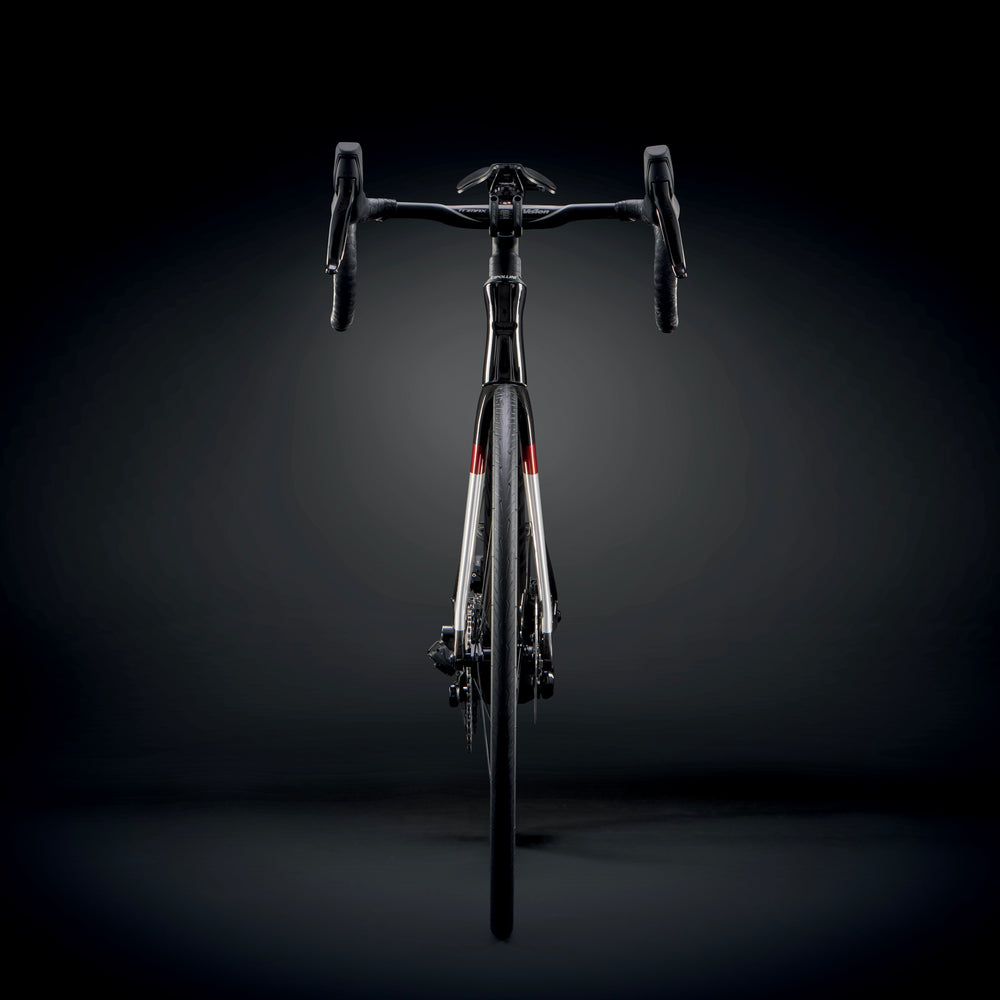

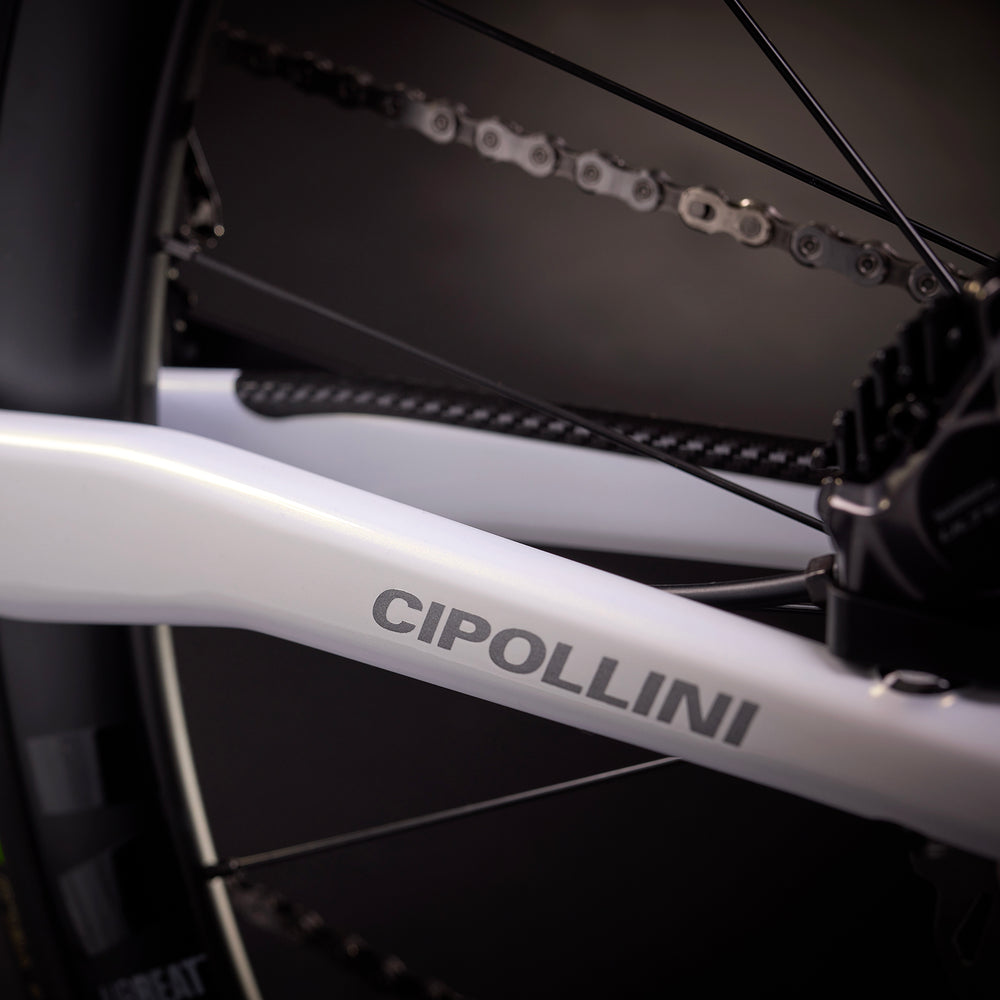

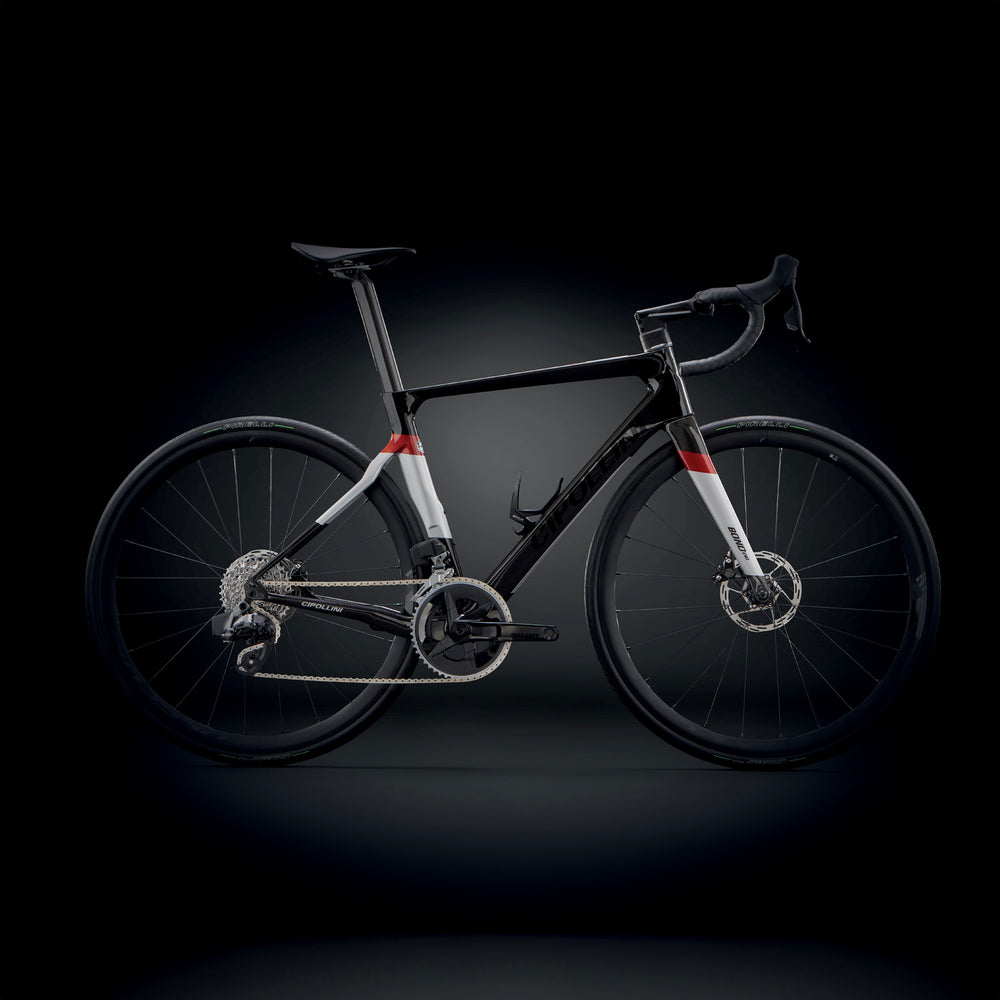

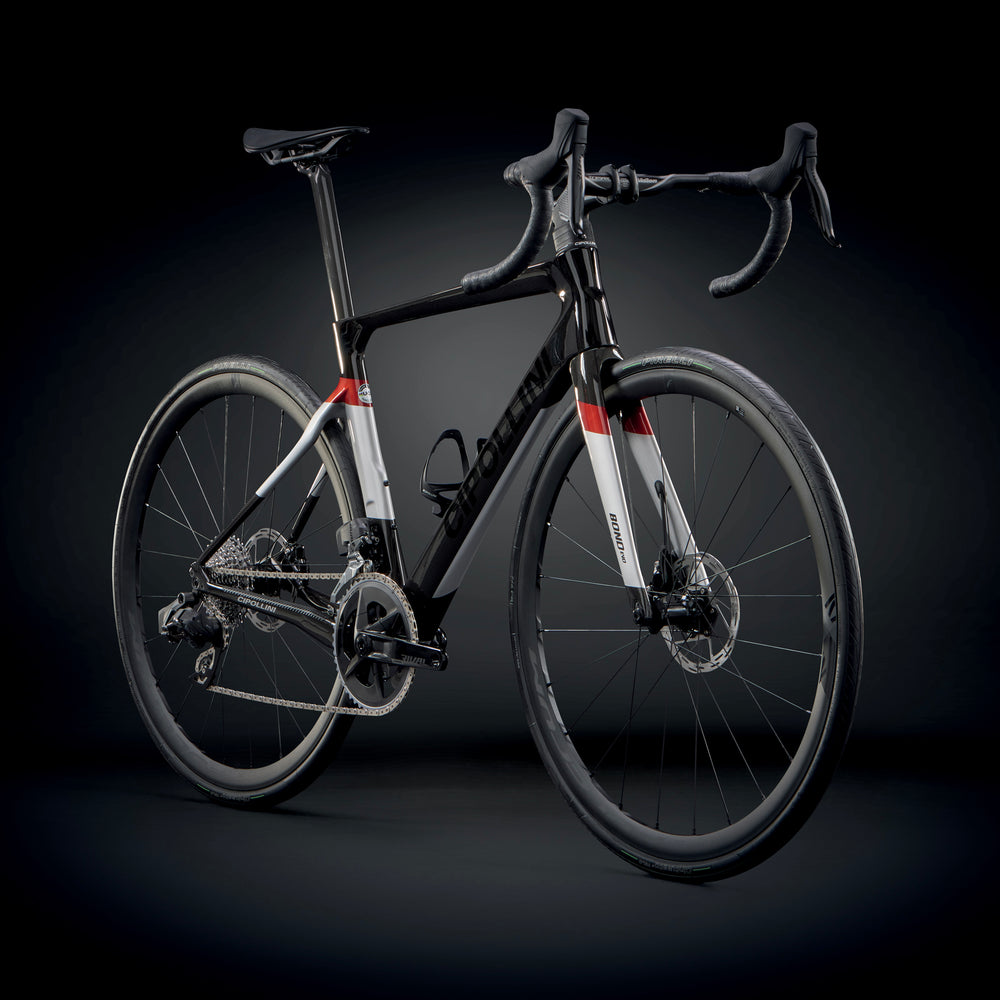

Discover BOND EVO in every detail
BOND EVO is a comfortable essence thanks to a frame with attention paid to the minimum detail.
Description

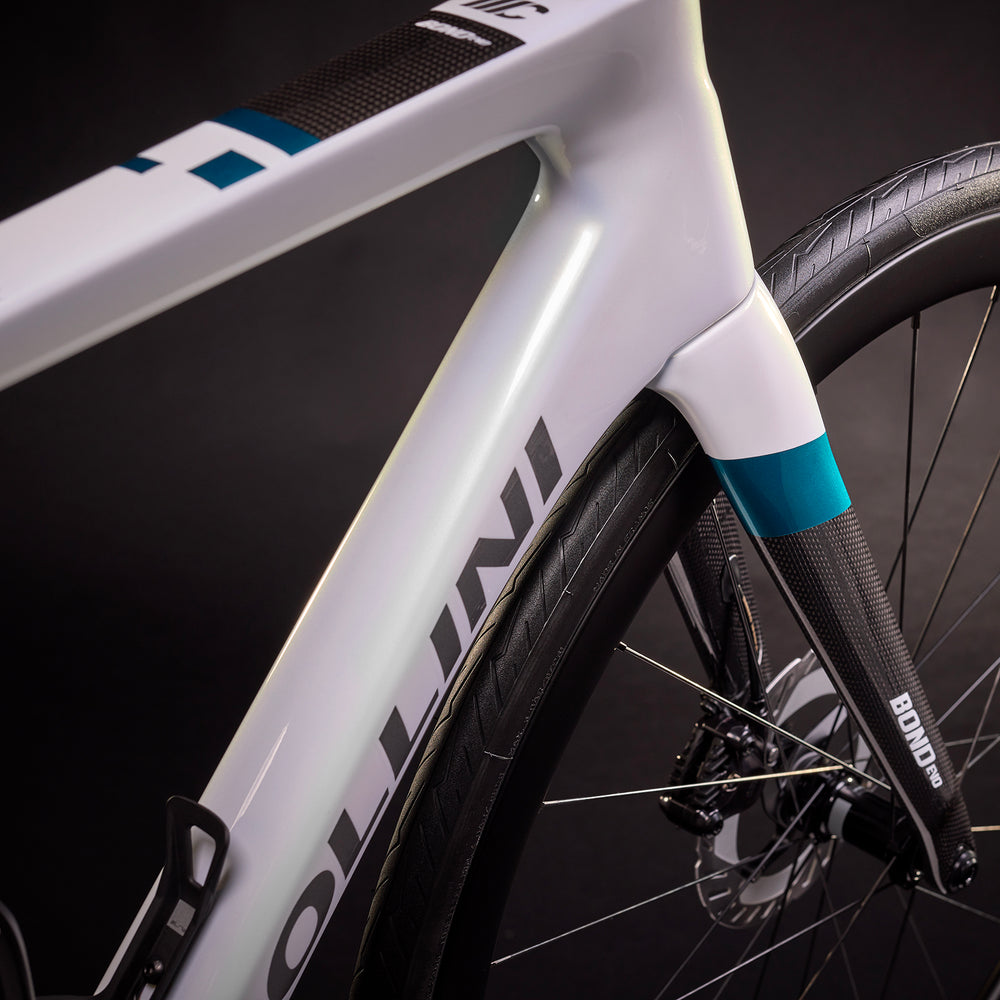

- . by the internal cable passage that provides maximum integration for hydraulic and electronic cables, thanks to the 1'' 1/2 steering series and the specific fork.
- . by the BB86 central bracket which allows the direct assembly of the press-fit caps of the group producer without the need for adapters.

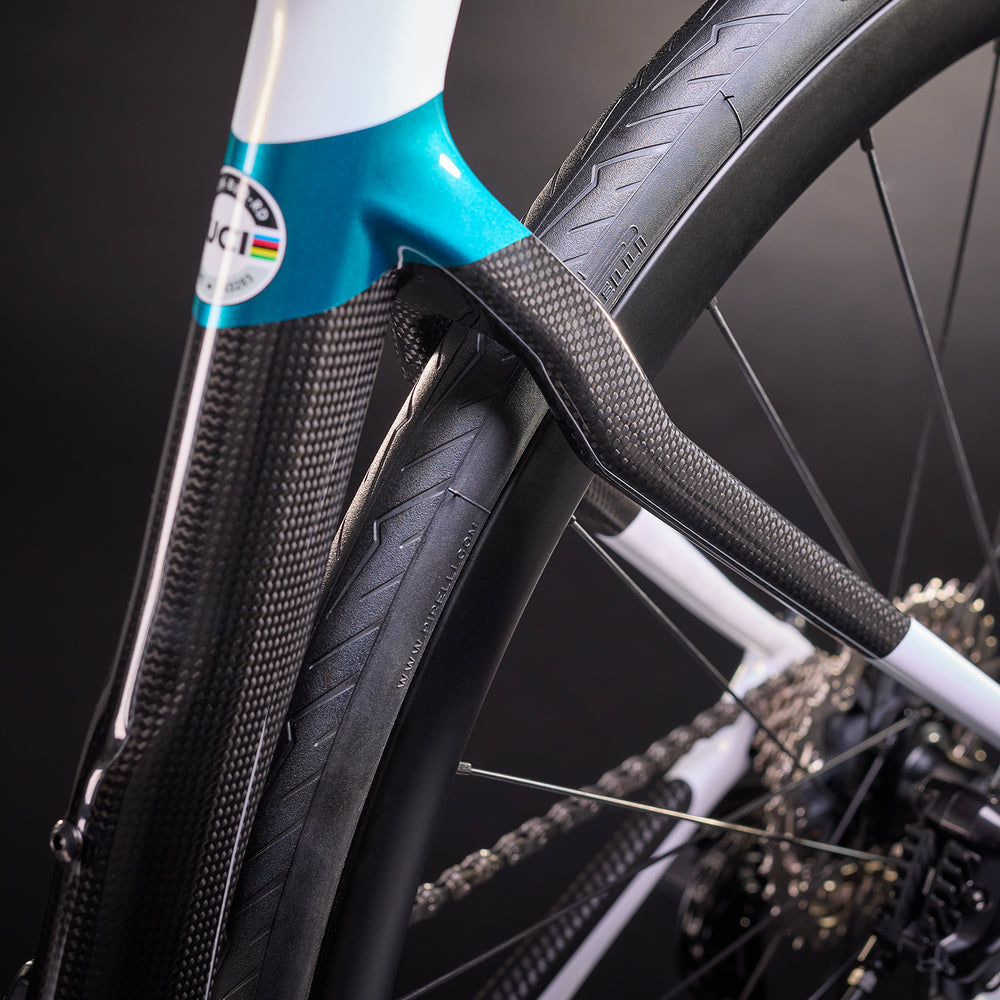

- . by the passage compatible with comfort covers of up to 28 mm.
User manual
Warranty
Spare parts
Mechanization
TCM, the Frame of a Genius
MCipollini’s TCM monocoque frame eliminates many of the weaknesses of the other monocoque frames on the market, which are often built by fastening the rear triangle to the front of the frame using adhesive. This treatment makes the frame structure more prone to deterioration in the long term, resulting in a decrease in performance. TCM's monocoque structure however tends to absorb the pressures of the frame more evenly and with less impact, promoting durability over the years. Stronger, tougher, lighter: this is why the MCipollini frame is The Frame of a Genius.
How we build the TCM frame
The TCM frame created from a single mould, thanks to a long and complex machining process. The carbon elements are positioned and layered inside an aluminium mould to achieve the maximum result. This means that the lamination process produces a single piece that does not undergo any further structural processing or subsequent firing that could alter the frame structure.
Perfect fibres
The choice of the fibres used in the lamination, their certification and the autoclave construction technology bestow unique mechanical characteristics to the MCipollini frames. The materials used in the manufacturing process are pre-impregnated with epoxy matrix resins and undergo sequential checks to ensure that the resin content is uniform on all the various parts.
